Our Product Technical Specifications
Explore advanced engineering, smart features, and comprehensive performance breakdown of our flagship backup systems.

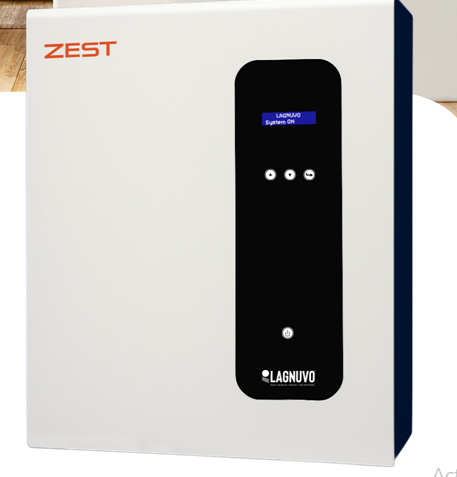

ZEST Li 1500
Pure Sine Wave
Inbuilt Lithium Battery
Fast Charging
Plug and Play
Wall Mounted
Maintenance Free
Inverter Specifications
| Inverter Model | ZEST-Li1500 |
|---|---|
| Inverter Voltage | 12V |
| Capacity in VA | 1350VA |
| Full Load Capacity | 945W |
| Grid Range (Inverter Mode) | 90V – 280V |
| Grid Range (UPS Mode) | 180V – 265V |
| Output Wave Form | Pure Sine Wave |
| Output Voltage Range | 220V/230V |
| Output Frequency | 50Hz |
| Efficiency | >85% at Full Load |
| Grid Charging Current | 16A |
Battery & Mechanical Specs
| Battery Type | LiFePO4 |
|---|---|
| Battery Capacity | 1280Wh |
| Battery Voltage | 12.8V |
| BMS Configuration | 4S100A |
| Display Type | LCD |
| Weight | 20Kg |
| Dimensions (mm) | 470 x 370 x 120 |
| Operating Temperature | 0°C – 60°C Ambient |
ZEST Lagnuvo Series
Pure Sine Wave
Lagnuvo Smart LCD
Lithium Power
Advanced BMS
Wall Mounted
High Efficiency
Inverter Specifications
| Inverter Model | ZEST Lagnuvo |
|---|---|
| Inverter Voltage | 12V / 24V |
| Capacity in VA | 1500VA |
| Full Load Capacity | 1050W |
| Grid Range (Inverter Mode) | 90V – 280V |
| Grid Range (UPS Mode) | 180V – 265V |
| Output Wave Form | Pure Sine Wave |
| Output Voltage Range | 220V/230V |
| Output Frequency | 50Hz |
| Efficiency | >88% at Full Load |
| Grid Charging Current | 18A |
Battery & Mechanical Specs
| Battery Type | LiFePO4 |
|---|---|
| Battery Capacity | Standard Wh |
| Battery Voltage | 12.8V |
| BMS Configuration | Advanced BMS |
| Display Type | Lagnuvo Smart LCD |
| Weight | Approx. 21Kg |
| Dimensions (mm) | Standard Cabinet |
| Operating Temperature | 0°C – 60°C Ambient |
